iRoll PR35 Digital Plate Rotator – Programmable, BLDC Motor, Multi-Tube Support
iRoll PR35 Digital Plate Rotator – Programmable, BLDC Motor, Multi-Tube Support
Low stock: 10 left
Couldn't load pickup availability

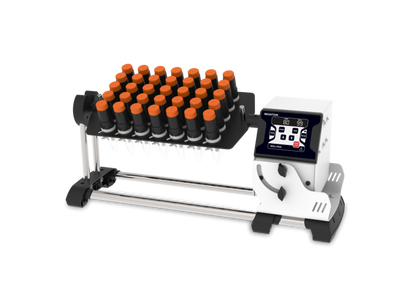

The iRoll PR35 from Neuation is a high-performance digital plate rotator, expertly engineered for uniform mixing and sample preparation. Powered by a brushless DC motor and loaded with smart programmable features, the iRoll PR35 ensures precision, flexibility, and convenience in every lab setting. Compatible with up to 55 tubes at once, this rotator provides reliable speed control, bidirectional motion, and user-defined protocols for advanced laboratory workflows.
Key Features – iRoll PR35
Maintenance-Free BLDC Motor for smooth and quiet operation
Variable Speed: 10–80 RPM with ±1 RPM accuracy
Pulse Mode: Alternate CW/CCW motion with 2-second stops for uniform mixing
Programmable Mode: Save up to 9 user-defined programs for quick access
Digital Timer: 1 to 99 minutes or continuous operation
Tool-Free Roller Removal for quick cleaning and flexibility
Auto Power Resume: Automatically resumes operation after power failure
Digital Display: Clear view of speed, timer, and mode settings

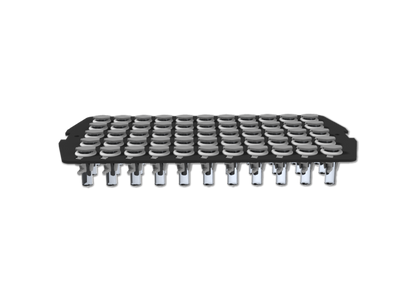

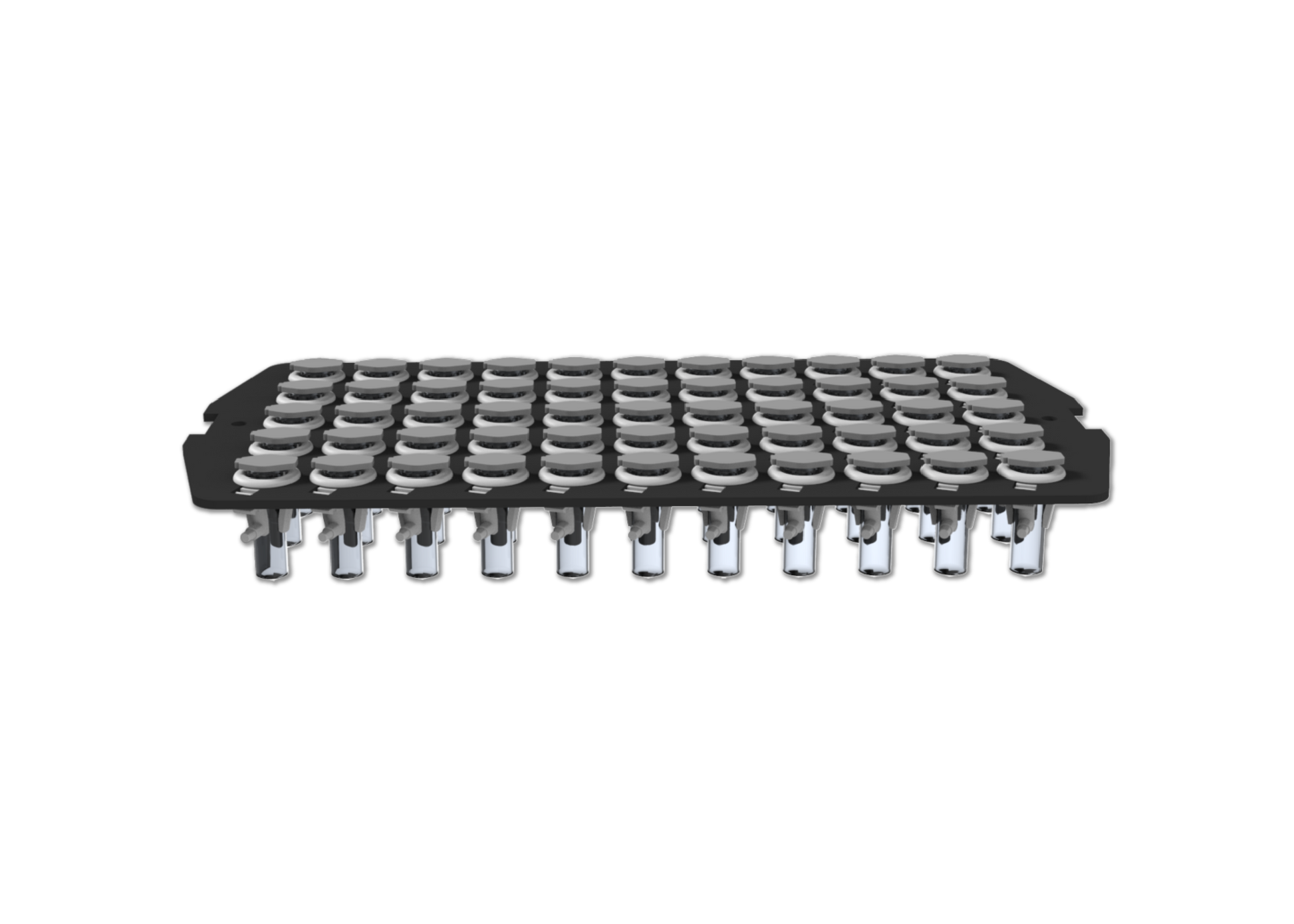

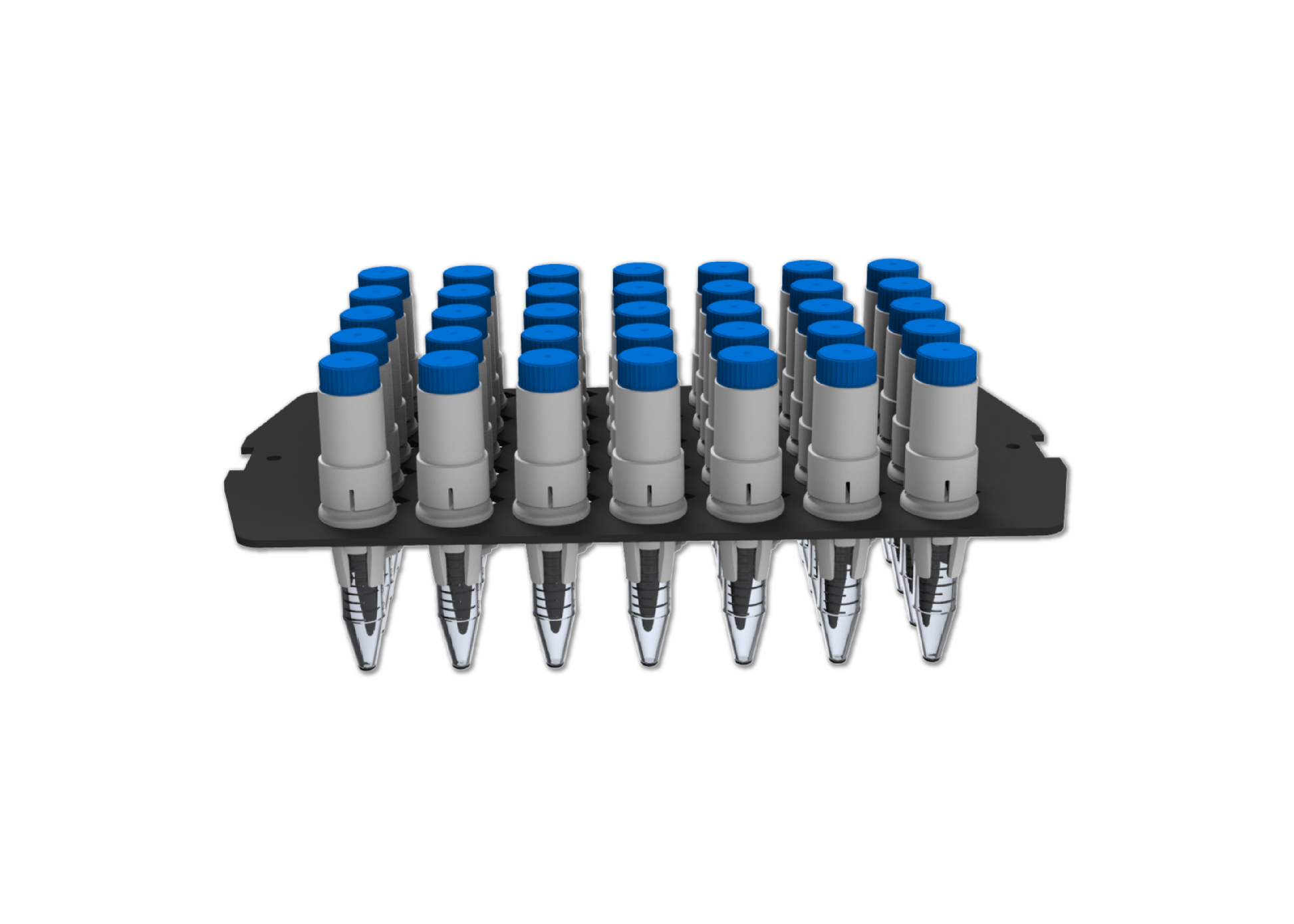

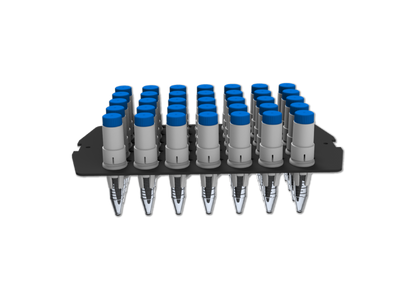

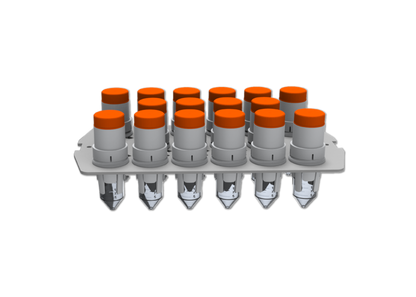

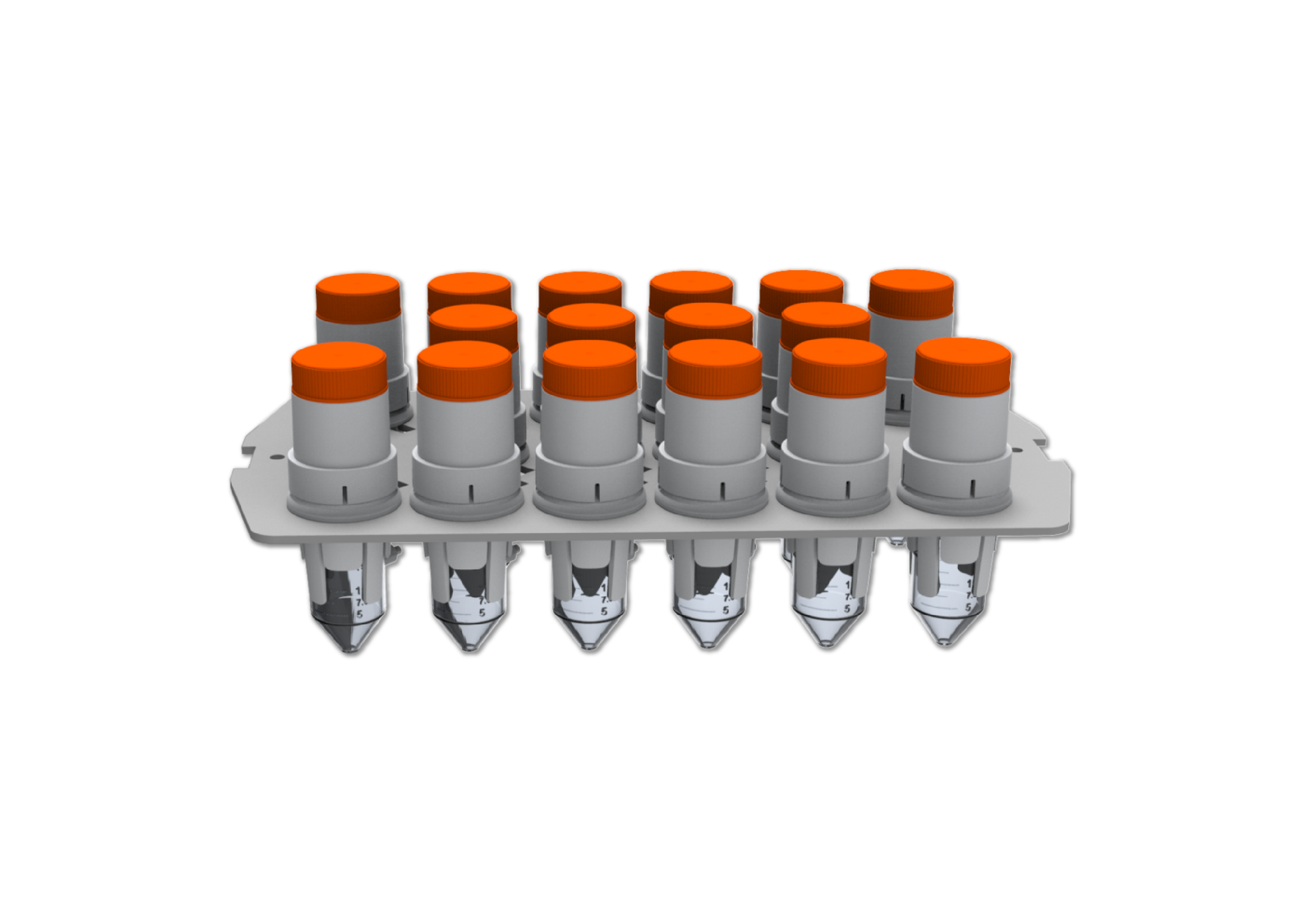

Multi-Tube Capacity: Holds 16 × 50 ml, 35 × 15 ml, or 55 × 2 ml tubes
Compact Design: Saves space and offers IP21 protection for safe lab use
| Parameter | Specification |
|---|---|
| Model | iRoll PR35 |
| Motor Type | BLDC (Brushless DC Motor) |
| Speed Range | 10–80 RPM (±1 RPM increments) |
| Timer Range | 1–99 minutes & infinite mode |
| Pulse Mode | Yes, CW/CCW with 2-second pause |
| Programmable Programs | Up to 9 user-defined |
| Capacity | 16 × 50 ml, 35 × 15 ml, 55 × 2 ml |
| Weight Capacity | Up to 1.5 kg |
| Display | Digital |
| Auto-Restart Feature | Yes (Power Intermittent Mode) |
| Input Voltage | 24V |
| Dimensions (W × D × H) | 540 × 274 × 186 mm |
| Protection Class | IP 21 |
