Neuation Disc Rotato iRoll DR25
Neuation Disc Rotato iRoll DR25
Low stock: 10 left
Couldn't load pickup availability

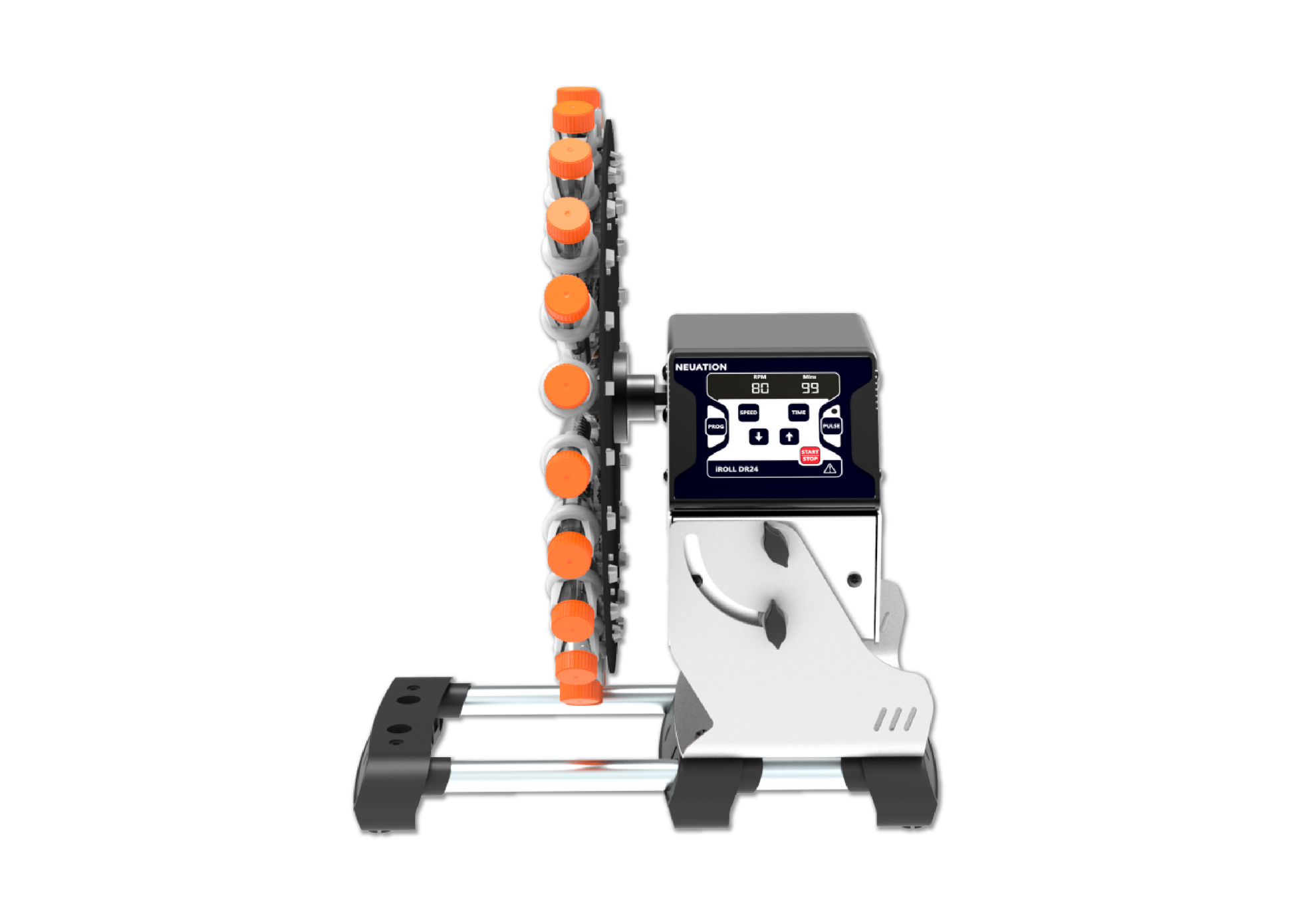

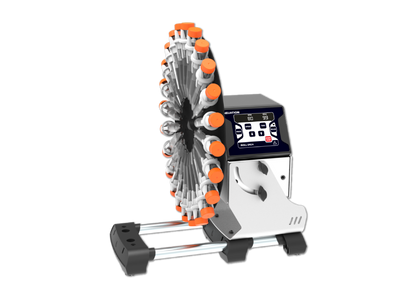

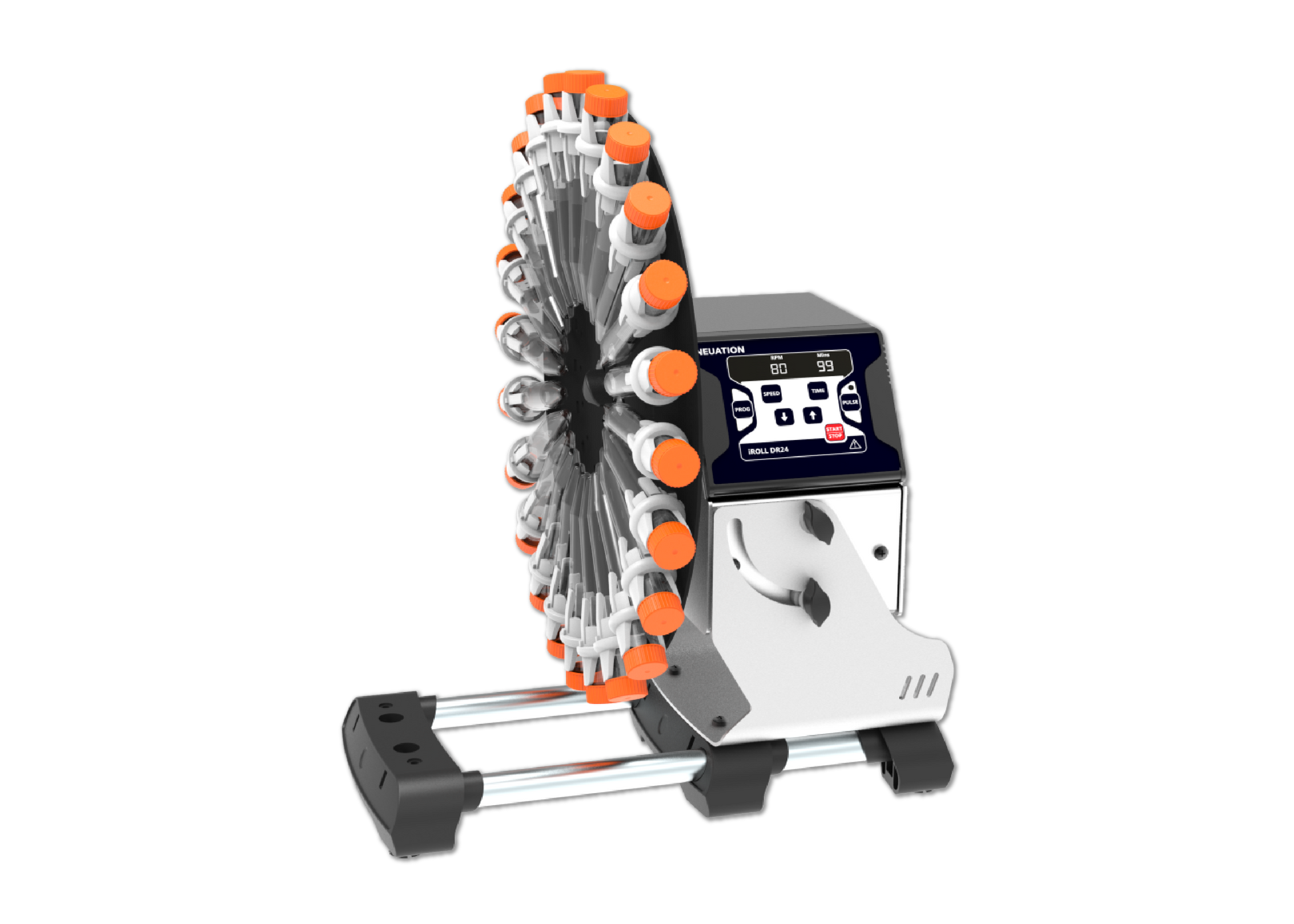

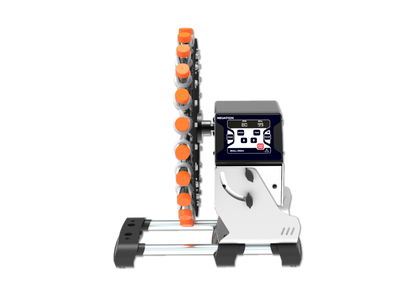

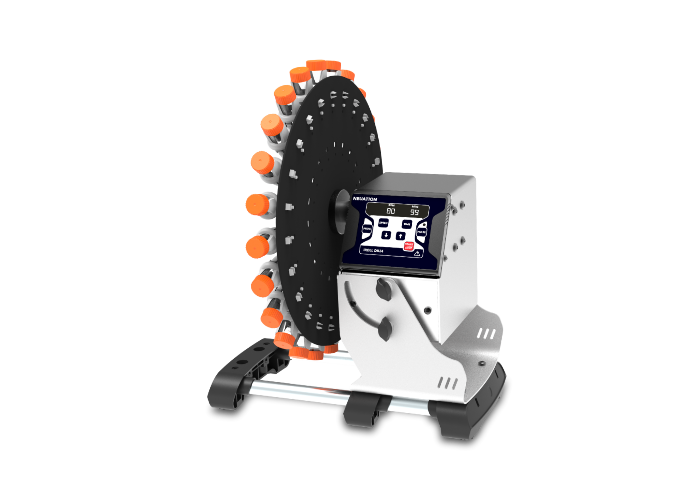

The iRoll DR24 from Neuation is a high-performance, digital disc tube rotator designed to deliver uniform, efficient mixing in laboratory applications. Equipped with a maintenance-free BLDC motor, variable angle control, and a user-programmable mode, it ensures thorough and consistent mixing for up to 44 tubes at once. Its durable build, versatile tube compatibility, and intuitive interface make it ideal for biological sample processing, blood mixing, and other tube-based applications.
Key Features – iRoll DR24
BLDC Motor for quiet, efficient, and long-lasting performance
Variable Speed: 10–80 RPM, with ±1 RPM accuracy
Pulse Mode: Alternating CW/CCW motion with 2-second pauses for thorough mixing
User-Programmable Mode: Save up to 9 custom protocols
Adjustable Disc Angle: 0° to 90° for different mixing requirements
Digital Display: Easy monitoring of speed, time, and mode
Auto Power Resume: Automatically resumes operations after power failure
Tool-Free Disc Removal for effortless cleaning and replacement

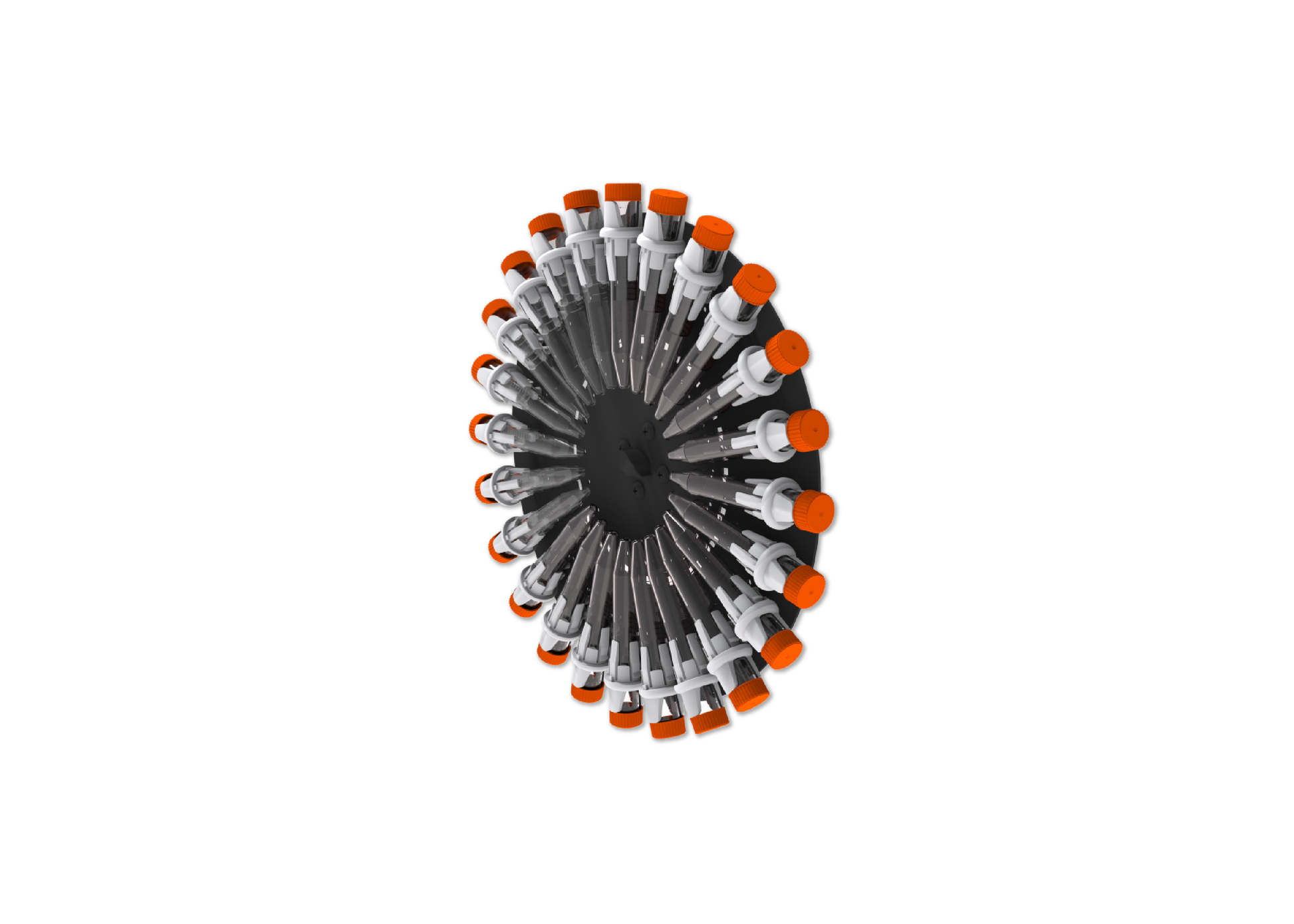

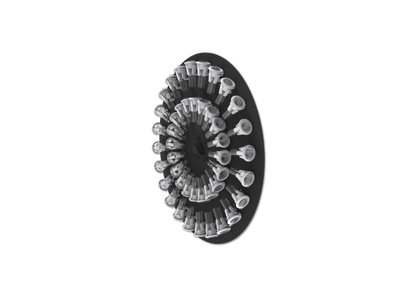

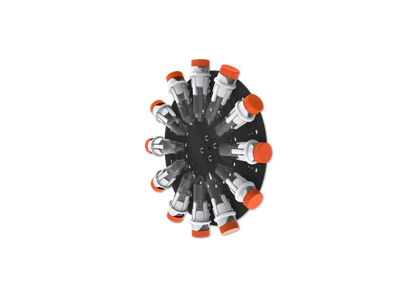

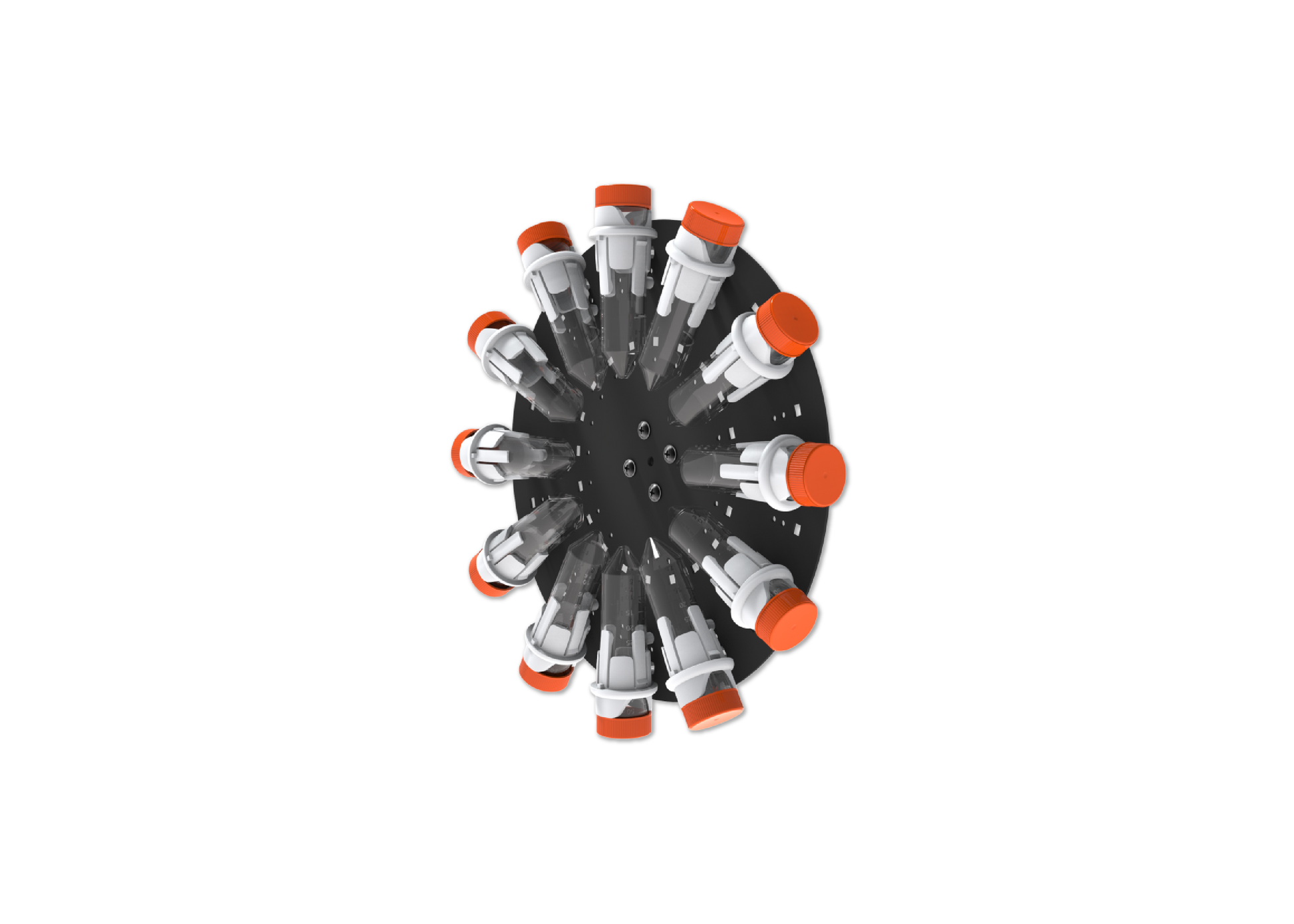

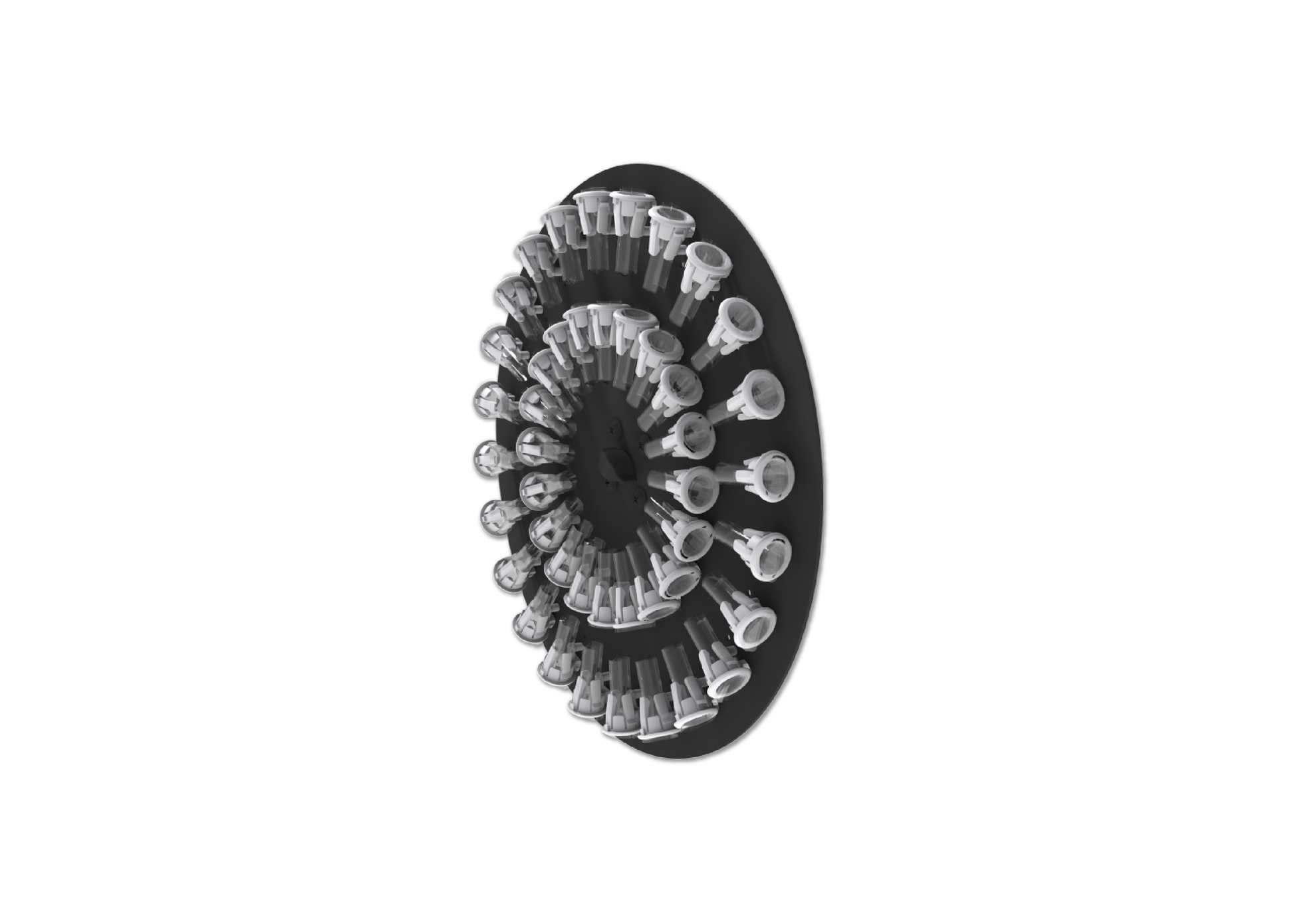

Supports Multiple Tube Types: 12 × 50 ml, 24 × 15 ml, or 44 × 2 ml
Compact, Safe Design: IP21-rated and safe low-voltage operation
| Parameter | Specification |
|---|---|
| Model | iRoll DR24 |
| Motor Type | BLDC (Brushless DC) |
| Speed Range | 10–80 RPM (±1 RPM increment) |
| Timer Range | 1–99 minutes & infinite mode |
| Pulse Mode | Yes (CW/CCW with 2-second stop) |
| Programmable Modes | Up to 9 user-defined programs |
| Disc Plate Angle | Adjustable from 0° to 90° |
| Tube Compatibility | 12 × 50 ml, 24 × 15 ml, 44 × 2 ml |
| Maximum Load Capacity | 2 kg |
| Digital Display | Yes |
| Auto-Restart After Power Loss | Yes |
| Input Voltage | 24V |
| Dimensions (W × D × H) | 383 × 325 × 325 mm |
| Protection Class | IP 21 |
